POST INDICATOR VALVE 4' -12'

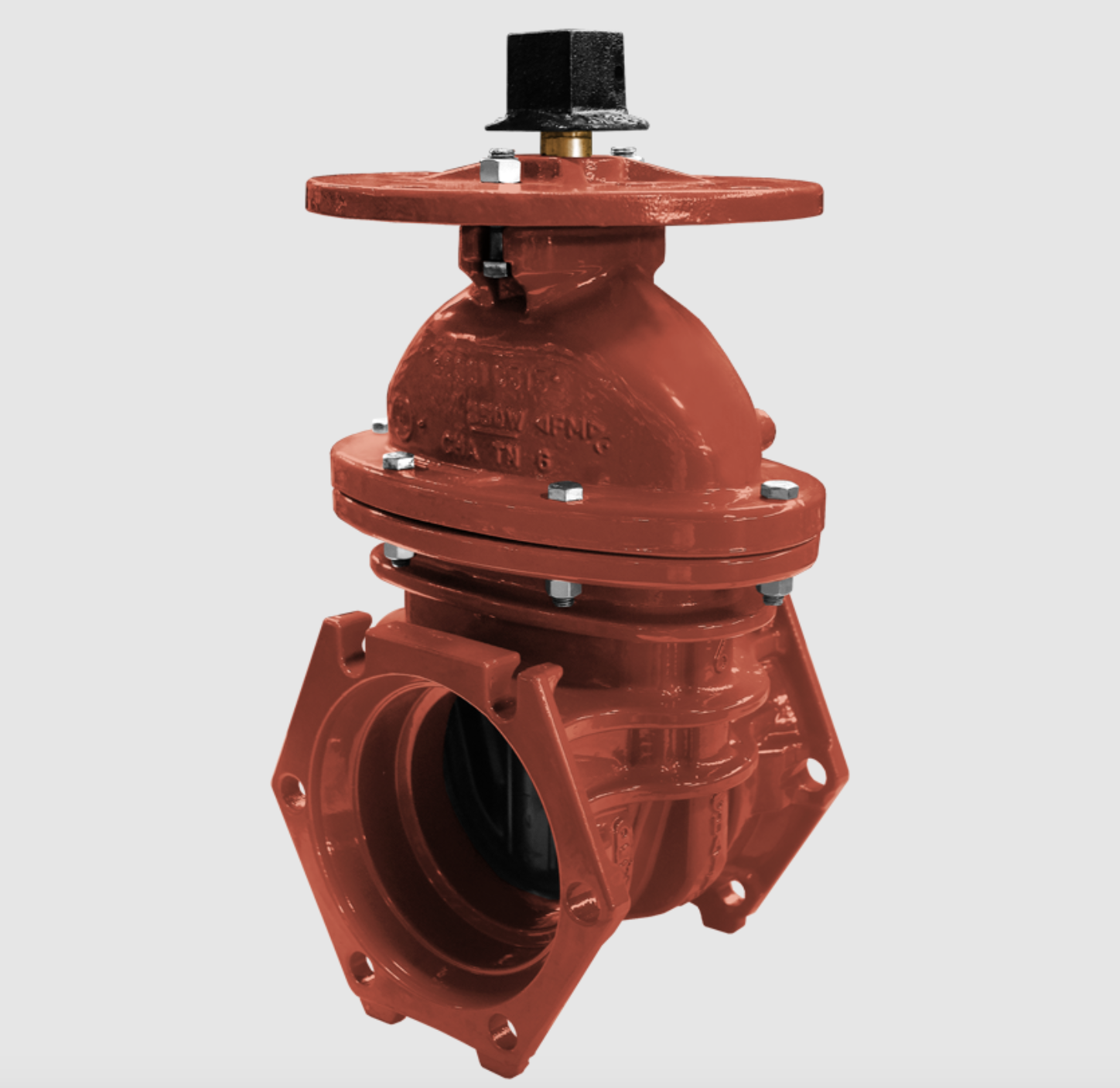

POST INDICATOR VALVE 4" -12" MECHANICAL JOINT X MECHANICAL JOINT ENDS

P-2361- 20 (with M.J. Accessories+)
P-2361- 23 (less M.J. Accessories)
Sizes: 4", 6", 8", 10", 12"

FEATURES:

• Indicator Post Style Stuffing box
• 2" Square Operating Nut
• UL 262 Listed and FM 1120/1130 Approved and certified to ANSI/NSF 61 & 372
• Iron body with Mueller® PRO-GARD® Fusion Bonded Epoxy Coated interior and exterior surfaces
• Non-rising bronze stem
• Rubber encapsulated iron wedge
• Mechanical joint ends comply with ANSI/AWWA C111
• 350psig (2400 kPa/24 barg) maximum working pressure, 700psig (4800 kPa/48 bar) static test
• Triple O-ring seal (2 above the thrust collar and 1 below)
• Epoxy coating meets or exceeds all applicable requirements ANSI/AWWA C550
• Meets or exceeds all applicable requirements of ANSI/AWWA C515

OPTIONS:

• Stainless steel stem: Type 304 and Type 316
• Low zinc, silicon bronze ASTM B98-C66100/H02 stem
• EPDM disc and O-rings
